XJB200 series biological microscope is equipped with excellent flat field achromatic objective lens and large field eyepiece, with clear imaging and wide field of vision. It adopts smooth and simple shape design, low-level focusing handwheel and inward objective lens converter, which makes the operation convenient and comfortable and has a wide space. The product can be widely used in biology, medicine, industry, agriculture and other fields. It is an ideal instrument for medical treatment, teaching, scientific research and other institutions.

1. Introduce

XJB200 series biological microscope is equipped with plan achromatic objectives and wide field eyepieces. It provides clear image, wide field, convenience operation. It can be used for biology medicine agriculture and industry area widely. It is the ideal instrument in medical treatment, teaching demonstration and scientific research.



▲ With wide field eyepieces and plan achromatic objectives, the field of view is widely and clear

▲ Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm

▲ Using Kohler illumination with 6V 20W halogen lamp with brightness control

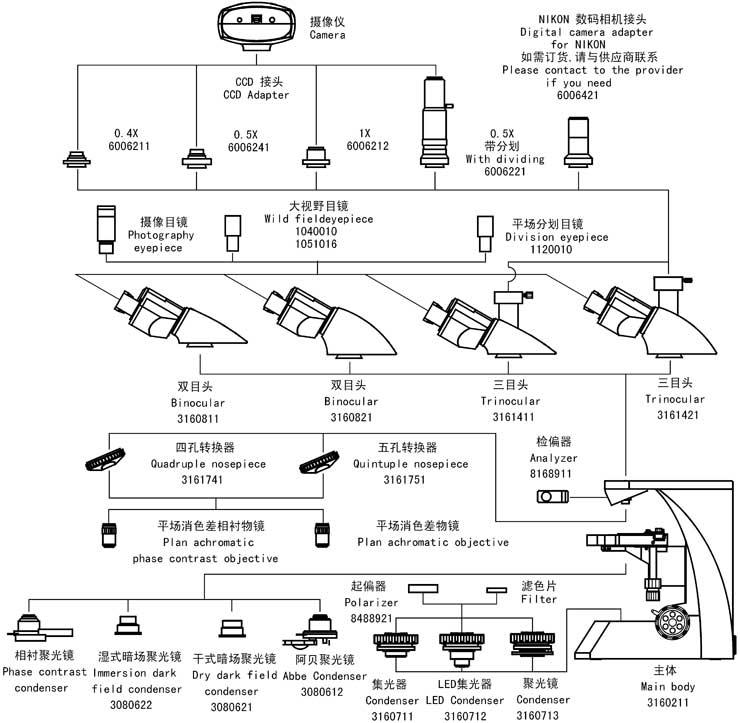

2. Structure



3. Image

 成像图1.jpg          成像图2.jpg          成像图3.jpg

       Polarized observe                    Bright type observe               Phase contrast observe
